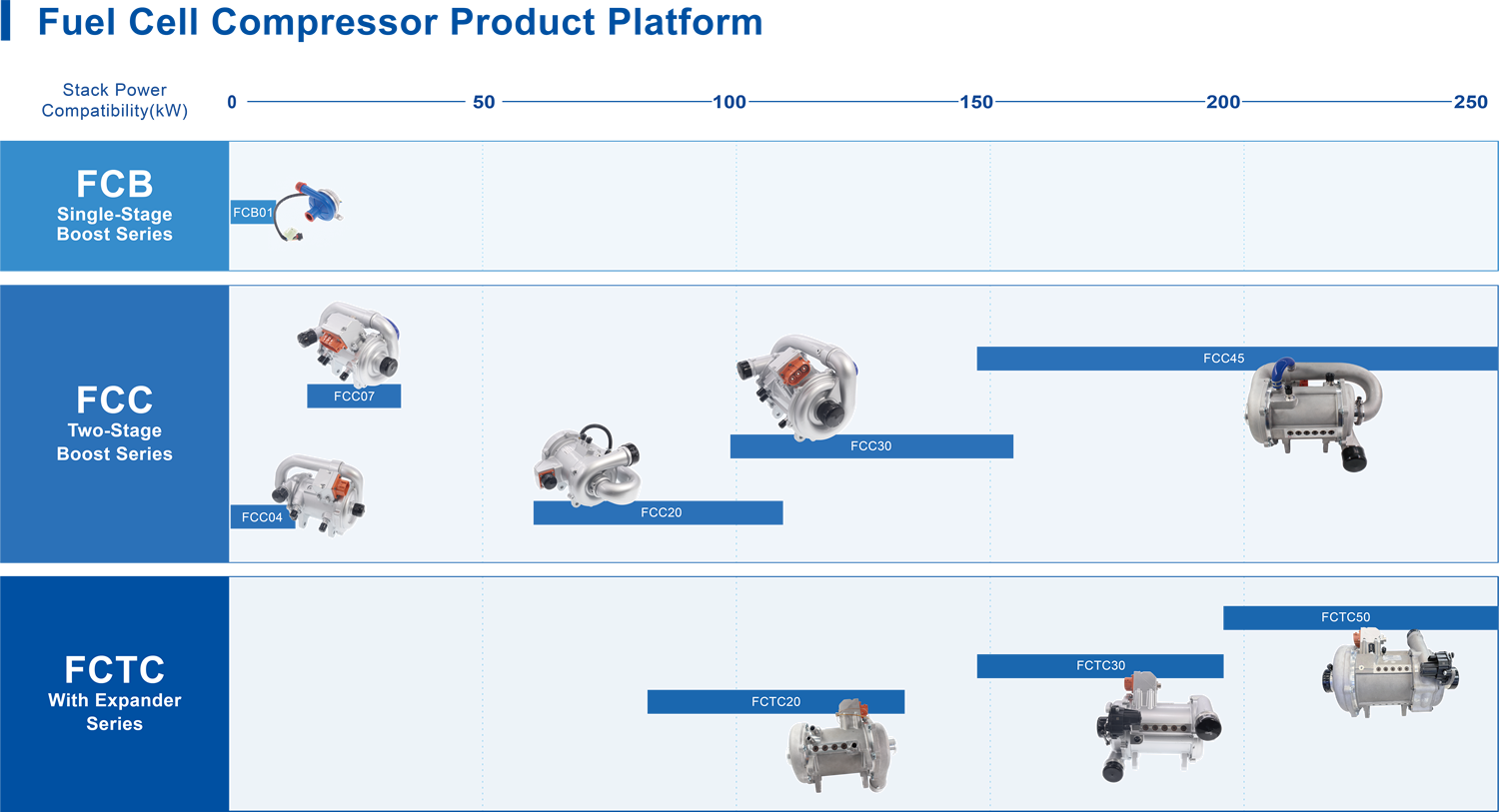

Fuel cell systems convert the chemical energy of hydrogen or other fuels and oxygen directly into electrical energy. Fuel cell compressors provide high-pressure, clean, and dry compressed air to the system. Easyland's fuel cell compressors are compatible with fuel cell systems ranging from 0.5kW to 250kW, covering applications in new energy vehicles (fuel cell electric vehicles), hydrogen energy transportation (forklifts, aircraft, and ships), and hydrogen power generation (portable power sources, small and large power units). The product line includes single-stage boost compressors, two-stage boost compressors, and compressors with expanders.

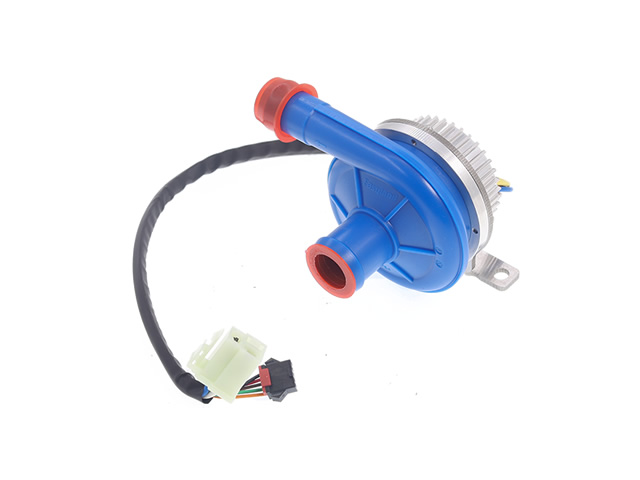

The FCB Single-Stage Compressor Series feature compact size, lightweight construction, and no need for water cooling, offering long lifespan and compatibility with 0.5kW-1.5kW fuel cell systems. The maximum overall efficiency can reach 55%. To meet varying voltage requirements across different applications, the platform offers products in multiple voltage versions such as 12V, 24V, and 48V, fully addressing diverse customer needs.

Product Features:

Compact size, lightweight, no water cooling required, long lifespan, high overall efficiency, multiple voltage versions.

Application Scenarios:

Electric two-wheelers, drones, portable power sources, etc.

Product Specifications:

  • Model: ELD-FCB0104001
    Compressor: Single centrifugal compressor
    Bearing: Ball bearing (special grease)
    Cooling Medium: Air cooling
    Ambient Temperature: -20°C to 65°C
    Controller Input Voltage: 12VDC
    Weight: 0.34kg
    Maximum Pressure Ratio: 1.13



  • Maximum Mass Flow : 7 g/s
    Maximum Speed: 45,000 RPM
    Response Speed :From rest to idle ≤1s;From idle to rated point ≤3s;From idle to rest ≤1s;

  • From rated point to idle ≤3s
    Layout: (60 + cable length) × 82.5 × 85.5 mm
    Applicable System Power: 0.5-1.5kW
    Maximum Motor Power: 120W
    Level of Protection: -

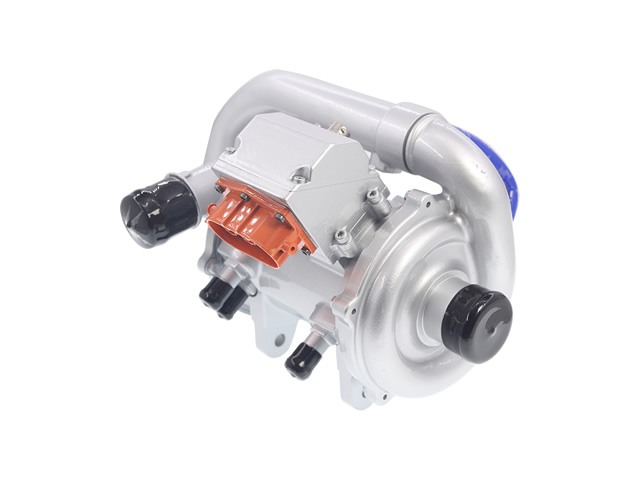

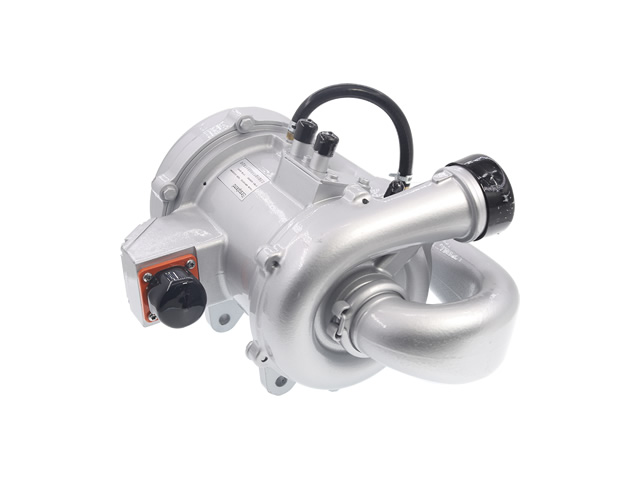

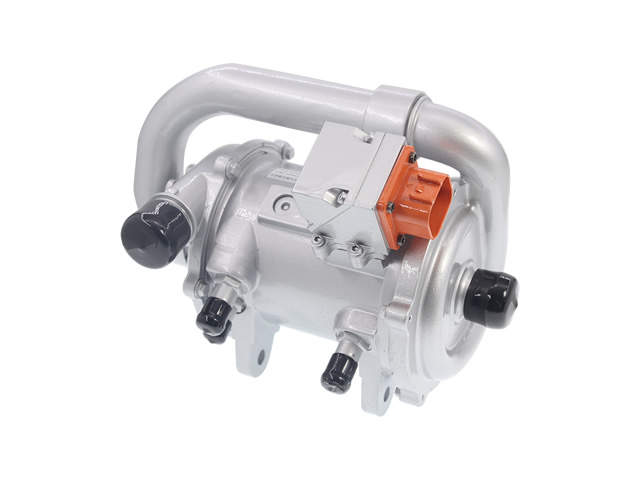

The FCC Two-Stage Compressor Series offer comprehensive power coverage and superior performance, making it ideal for fuel cell systems ranging from 15kW to 200kW. With an overall efficiency of 70% or higher, this series demonstrate a significant performance advantage over competing products.

Product Features:

Comprehensive power coverage with superior performance.

Application Scenarios:

Forklifts, small power generation units, buses, urban sanitation vehicles, cold chain logistics, heavy-duty transport vehicles, and more.

Product Specifications:

  • Model: ELD-FCC0410001
    Compressor: Single-Stage/Two-Stage
    Bearing: Air Foil Bearing
    Cooling Medium: Water/Ethylene Glycol
    Ambient Temperature: -40°C to 85°C
    Controller Input Voltage: 9-32 VDC; 48-80 VDC
    Weight: 7.0 kg
    Maximum Pressure Ratio: 2.8

  • Maximum Mass Flow: 28 g/s
    Maximum Speed: 120,000 rpm
    Response Speed : 1s (0-30,000) / 1s (30,000-0); 1s (30,000-120,000) / 1s (120,000-30,000)
    Layout: 272 × 181 × 180 mm
    Applicable System Power: <20 kW
    Maximum Motor Power: 4 kW
    Level of Protection : IP67

Product Specifications:

  • Model: ELD-FCC0710001
    Compressor: Centrifugal/Two-Stage
    Bearing: Air Foil Bearing
    Cooling Medium: Water/Ethylene Glycol
    Ambient Temperature: -40°C to 85°C
    Controller Input Voltage: 9-32 VDC; 48-80 VDC
    Weight: 7.7 kg
    Maximum Pressure Ratio: 2.8

  • Maximum Mass Flow: 52 g/s
    Maximum Speed: 110,000 rpm
    Response Speed : 1s (0-30,000) / 1s (30,000-0); 1s (30,000-111,000) / 1s (111,000-30,000)
    Layout: 305 × 235 × 234 mm
    Applicable System Power: 20-40 kW
    Maximum Motor Power: 7 kW
    Level of Protection : IP67

Product Specifications:

  • Model: ELD-FCC2010001
    Type : Centrifugal/Two-Stage
    Bearing : Air Foil Bearing
    Cooling Medium: Water/Ethylene Glycol
    Operating Temperature Range: -40°C to 85°C
    Controller Input Voltage: 9 - 32 VDC; 450 - 750 VDC
    Weight: 10.72 kg
    Maximum Pressure Ratio: 3.7

  • Maximum Mass Flow: 200 g/s
    Maximum Speed: 95,000 rpm
    Response Speed : 1s (0-30,000 rpm) / 0.6s (30,000-0 rpm); 1.5s (30,000-95,000 rpm) / 1.4s (95,000-30,000 rpm)
    Layout: 328 × 285 × 185 mm
    Applicable System Power: 80-120 kW
    Maximum Motor Power: 25 kW
    Level of Protection : IP67

Product Specifications:

  • Model: ELD-FCC3010002
    Type: Centrifugal/Two-Stage
    Bearing: Air Foil Bearing
    Cooling Medium: Water/Ethylene Glycol
    Operating Temperature Range: -40°C to 85°C
    Controller Input Voltage: 9-32 VDC; 450-750 VDC
    Weight: 15 kg
    Maximum Pressure Ratio: 3.4

  • Maximum Mass Flow : 240 g/s
    Maximum Speed: 90,000 rpm
    Response Speed : 1s (0-30,000 rpm) / 0.6s (30,000-0 rpm); 1.5s (30,000-95,000 rpm) / 1.4s (95,000-30,000 rpm)
    Layout: 362 × 232 × 282 mm
    Applicable System Power: 100-160 kW
    Maximum Motor Power: 35 kW
    Level of Protection : IP67

Product Specifications:

  • Model: ELD-FCC4510001
    Type: Centrifugal/Two-stage
    Bearing: Air foil bearing
    Cooling Medium: Water/Ethylene Glycol
    Ambient Temperature: -40°C to 85°C
    Controller Input Voltage: 9 - 32 VDC; 450-750 VDC
    Weight: 18.6 kg
    Maximum Pressure Ratio: 3.75
  • Maximum Mass Flow : 300 g/s
    Maximum Speed: 90,000 rpm
    Response Speed :
    1s (0-30,000 rpm) / 0.6s (30,000-0 rpm)
    1.5s (30,000-90,000 rpm) / 1.4s (90,000-30,000 rpm)
    Layout: 403x299x240 mm
    Applicable System Power: 150~250 kW
    Maximum Motor Power: 45 kW
    Level of Protection : IP67

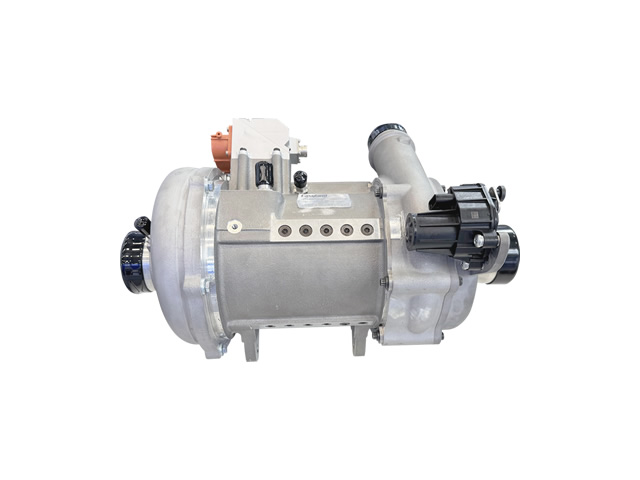

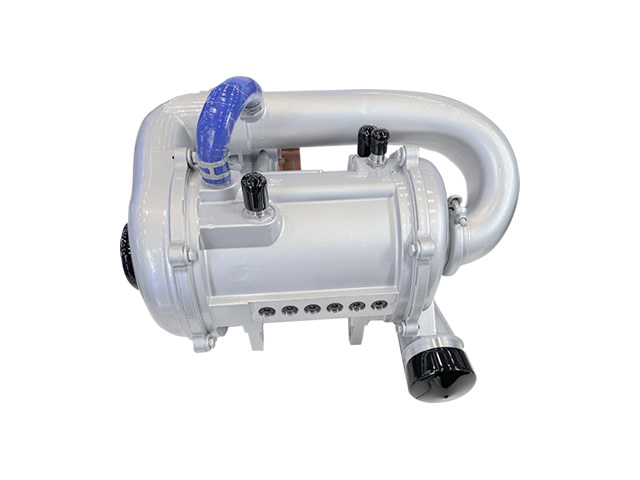

The FCTC series incorporate Variable Geometry Turbocharger (VGT) technology to achieve efficient energy recovery, designed for fuel cell systems ranging from 120kW to 300kW. In expander design, Easyland offers tailored solutions to match various system characteristics, such as pressure drops and flow rates. Through the expander's energy recovery function, overall system efficiency can be increased by up to 5%, addressing customer demands for lower power consumption and reduced operational costs.

Key Features

Integration of VGT technology for efficient energy recovery.

Applications

Long-haul heavy-duty trucks, large-scale power generation units, marine vessels.

Product Specifications:

  • Model: ELD-FCTC3010001
    Type: Centrifugal/Single-stage + Expander
    Bearing: Air foil bearing
    Cooling Method: Water/Ethylene Glycol
    Ambient Temperature: -40°C to 85°C
    Controller Input Voltage: 9~32 VDC; 450-750 VDC
    Weight: 16.54 kg
    Maximum Pressure Ratio: 3.42
  • Maximum Mass Flow : 320 g/s
    Maximum Speed: 110,000 rpm
    Response Speed : 1.5s (0-30,000 rpm) / 1.6s (30,000-0 rpm); 2.0s (30,000-110,000 rpm) / 1.5s (110,000-30,000 rpm)
    Layout: 334x285x210 mm
    Applicable System Power: 150~200 kW
    Maximum Motor Power: 35 kW
    Level of Protection : IP67

Product Specifications:

  • Model: ELD-FCTC5010001
    Compressor: Centrifugal/Single-stage + Expander
    Bearing: Air foil bearing
    Cooling Medium: Water/Ethylene Glycol
    Ambient Temperature: -40°C to 85°C
    Controller Input Voltage: 9~32 VDC; 450-750 VDC
    Weight: 18 kg
    Maximum Pressure Ratio: 3.8
  • Maximum Mass Flow : 370 g/s
    Maximum Speed: 110,000 rpm
    Response Speed: 1s (0-30,000 rpm) / 0.6s (30,000-0 rpm); 1.5s (30,000-110,000 rpm) / 1.4s (110,000-30,000 rpm)
    Layout: 384x265x265 mm
    Applicable System Power: 200~250 kW
    Maximum Motor Power: 52 kW
    Level of Protection : IP67
